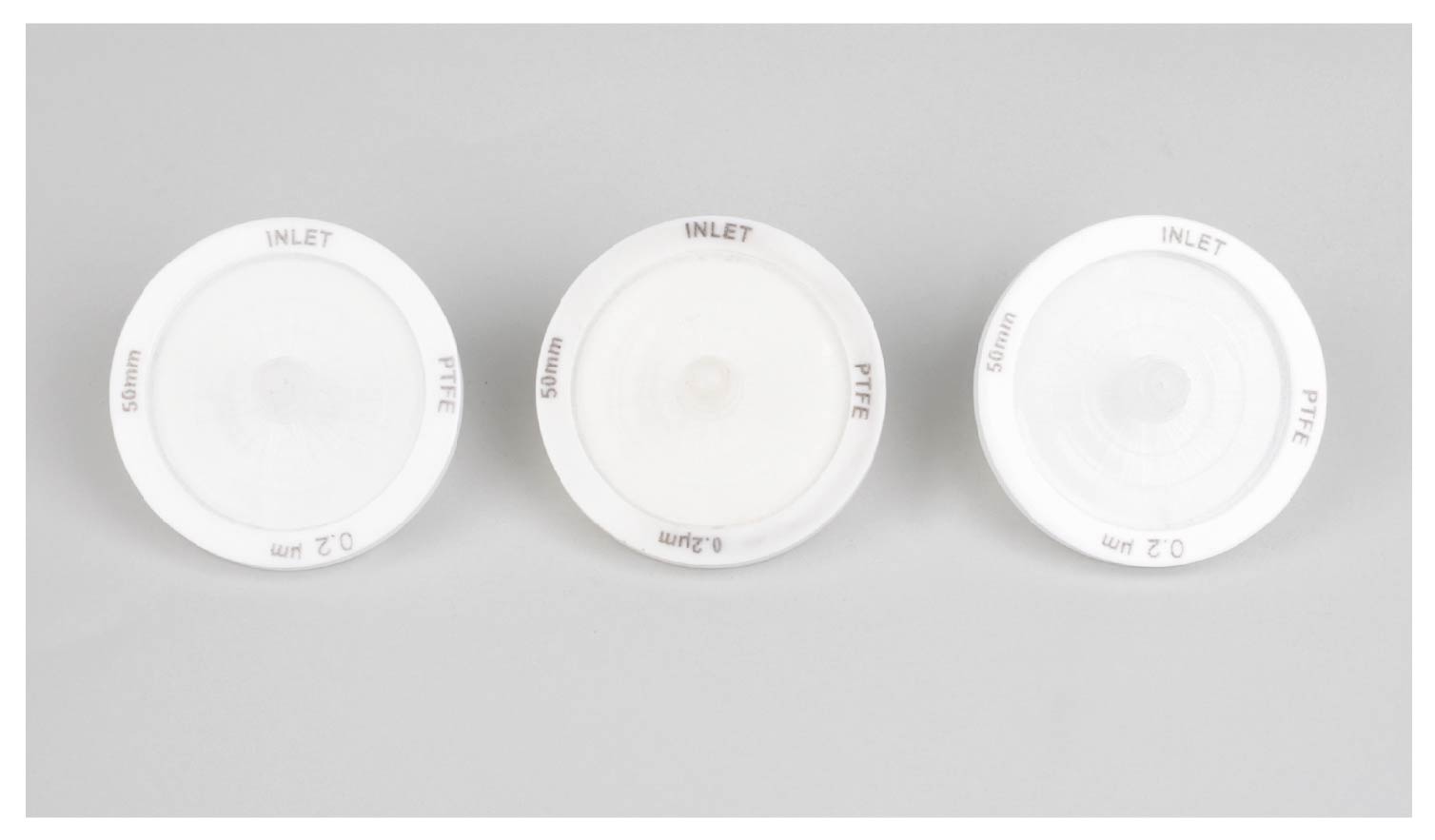

Micro Sep Disposable Vent Filter
DOWNLOAD SPEC SHEETMicro Separations filter is self-contained, compact, high flow, liquid rated, sterilizing-grade devices that meets the critical demands of the pharmaceuticals, biotechnology, and related industries. The product is designed and purpose build for small scale critical air and gas filtration applications.
Rugged polypropylene housings have broad chemical compatibility, hydrophobic membranes, including PTFE, PVDF, fiber glass laminated, provide high efficiency removal of airborne bacteria and particulate under dry or moist conditions.
Features & Benefits
- Ideal for small volume venting, solvent and gas filtration.
- Broad chemical compatibility.
- Economical; available in bulk packaging.
- 100% integrity tested during manufacture.
- Individual serialized for optimum traceability critical applications
Specifications
| Material of Construction | Filter Membrane | PTFE/ PVDF/ PP/ Fiberglass | |
| Downstream Support | PP (Polypropylene) | ||
| Capsule Housing | PP | ||
| Sealing Method | Thermal Bonding | ||
| Filtration Ratings | 0.2, 0.45, 0.8,1,3.5 µm | ||
| Inlet and Outlet | Stepped Hose Barbs, ¼”-1/2” (6.4-12.7) mm | ||
| Integrity Testing | Minimum Bubble Point (95 % Ethanol | PTFE, 0.2 µm PVDF, 0.2 µm PES, 0.2 µm | 1200 mbar 780 mbar 1200 mbar |
| Bacterial Retention | >10 7 cfu/ cm2 retention of brevundimonas diminuta per ASTM F838 | ||
| Sterilization | utoclave: 121 Deg. C to 135 Deg. C. (5 to 30 psi), 1 o 2 bar, 30 min, >- 3 cycles. Gamma Irradiation: 25 to 40 kGy once. Do not autoclave irradiated capsules. Capsules must not be in-line steam sterilized | ||
| Maximum Operating | Pressures | 4.1 bar (410 kPa, 60 Psi) at ambient temperature. | |
| Effective Filtration Area | 19.6 cm2 | ||
ORDERING INFORMATION
| Code. Membrane | Code. Rating | Code. Housing | Code. Pre-Filter | |
|---|---|---|---|---|
| MAVT | P PP E PES F PTFE V PVDF G Fiberglass | 010 0.1 020 0.2 045 0.45 080 0.8 100 1.0 300 3.0 500 5.0 | P PP H HDPE | - none P PP G Fiberglass |
