Micro Separations Micro Cellulose Thimbles (Type-MCT) – High-performance cellulose filtration thimbles for Soxhlet extraction, environmental monitoring, and laboratory applications.

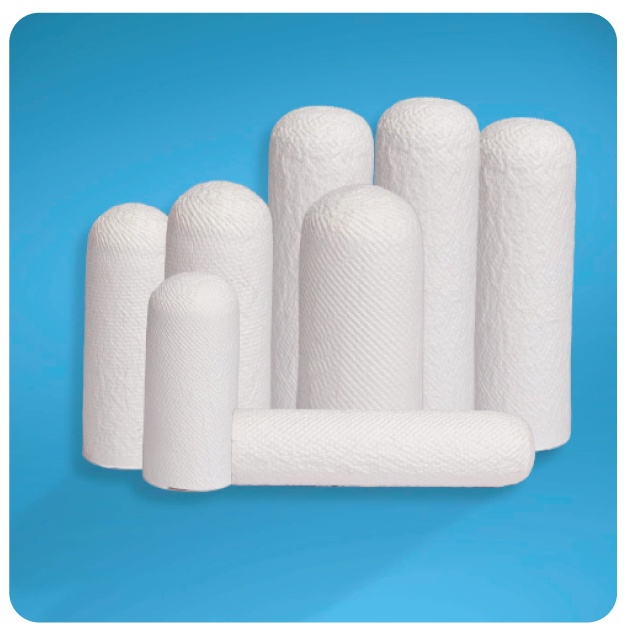

Micro Separations Micro Cellulose Thimbles Type-MCT

DOWNLOAD SPEC SHEET

Micro Separations Cellulose Extraction Thimbles have a reputation for purity and consistence high quality. Cellulose extraction thimbles are produced high quality cellulose cotton linter which has excellent mechanical strength and retentive.

Features and benefits

  • Designs to fit most commercial availability Soxhelet extractors
  • Temperature resistant (500oC)
  • Available in arrange of size and wall thickness to suit your application
Category: Tags: , , , , , , , ,
Specifications
PropertyUnit of MeasureValueVariations
Filter Median/aCellulosen/a
ThicknessmmSingle or double-
Particle retention for single Thicknessµm10µm-
Particle retention for double thicknesssµm6µmMin.
Maximum operating TemperatureCentigrade (oC)105oCMax
Binder-No Binding-
ORDERING INFORMATION
Nominal internal diameter
X External length (mm)		Catalogue NumberQuantity/packs
Grade MCT
19mm x90mmMCT199025/packs
22mm x80mmMCT228025/packs
25mm x80mmMCT258025/packs
25mm x100mmMCT2510025/packs
28mm x80mmMCT288025/packs
28mm x100mmMCT2810025/packs
30mm x80mmMCT308025/packs
30mm x100mmMCT3010025/packs
33mm x80mmMCT338025/packs
33mm x100mmMCT3310025/packs

Thickness of Thimbles used as per Application Smoke Stack gas monitoring
